Overview
Plastic laminate is not a sticker or a veneer — it is an engineered composite surface. HPL (High-Pressure Laminate) is built from 60–80 sheets of phenolic-impregnated kraft paper compressed into a 0.5mm–1.7mm sheet, topped with a decorative layer and a transparent melamine overlay that provides scratch, impact, and moisture resistance. TFL (Thermally Fused Laminate) is a thinner, single-layer melamine face fused directly to the board at the panel plant — ideal for vertical and low-wear interiors. CRL (Chemical-Resistant Laminate) adds a modified resin system that stands up to aggressive disinfectants, acids, and solvents used in healthcare and laboratory environments.
The cost-effectiveness of laminate depends on project scale and complexity. For smaller runs — a single reception desk, a small casework package, or a one-off retail counter — we fabricate entirely in-house: we keep stock cores, maintain a full laminate library, run edge-banding on our line, and glue/press panels in-shop. This keeps lead times short and gives the client complete control over colour matching and edge profiles. For larger projects — hospital wings, school board rollouts, national retail chains — material volume and consistency matter. We partner with certified laminate suppliers (Wilsonart, Formica, Arborite, Nevamar, Pionite) who can deliver full lot-controlled colour runs, matching edge-band rolls, and CRL certifications traceable to batch. We manage the procurement, receiving, and QC so the client deals with one millwork fabricator, not five material vendors.
Every laminate assembly we produce receives six-side sealing on wet-zone cores, PUR hot-melt adhesive bonding (not contact cement), and edge-band applied with pre-heating and end-cutting for a seamless, water-resistant perimeter. The result is a surface that survives decades of commercial use, disinfectant wipe-downs, and daily impact — at a fraction of the cost of solid-surface or veneer.
Best for
- Retail rollouts and cash-wraps requiring brand-standard colours
- Healthcare and laboratory casework needing CRL and disinfectant resistance
- Education — classrooms, libraries, admin, and lab casework
- Corporate offices — reception desks, pantries, storage, boardroom credenzas
- Multi-residential amenity and in-suite kitchens
- Food-service and hospitality back-of-house millwork
Standards we build to
Every service line is engineered against the same commercial code and standards framework — the two lists below are what we routinely reference on Canadian and US projects.
Canadian standards
- AWMAC North American Architectural Woodwork Standards (NAAWS 4.0) — Economy, Custom, or Premium grade
- AWMAC Guarantee & Inspection Service (GIS) — third-party inspected on request
- CAN/ULC-S102 & S102.2 — surface burning characteristics (Class A available)
- National Building Code of Canada (NBC) & Ontario Building Code (OBC) millwork provisions
- CSA B651 & AODA — accessibility for public and workplace millwork
- CAN/CSA O121, O151, O153 — Canadian plywood standards
US standards
- AWI Architectural Woodwork Standards (equivalent grading to NAAWS 4.0)
- ANSI/BHMA A156 series — commercial cabinet hardware grades 1/2/3
- ASTM E84 — surface burning (Class A/B/C flame-spread and smoke-developed)
- CARB Phase 2 & US EPA TSCA Title VI — formaldehyde-compliant panels (NAF/NAUF available)
- ANSI A208.1 (particleboard) & ANSI A208.2 (MDF) — panel performance grades
- HPVA HP-1 — hardwood & decorative plywood
- ADA 2010 Standards for Accessible Design
- International Building Code (IBC) millwork & interior finish provisions

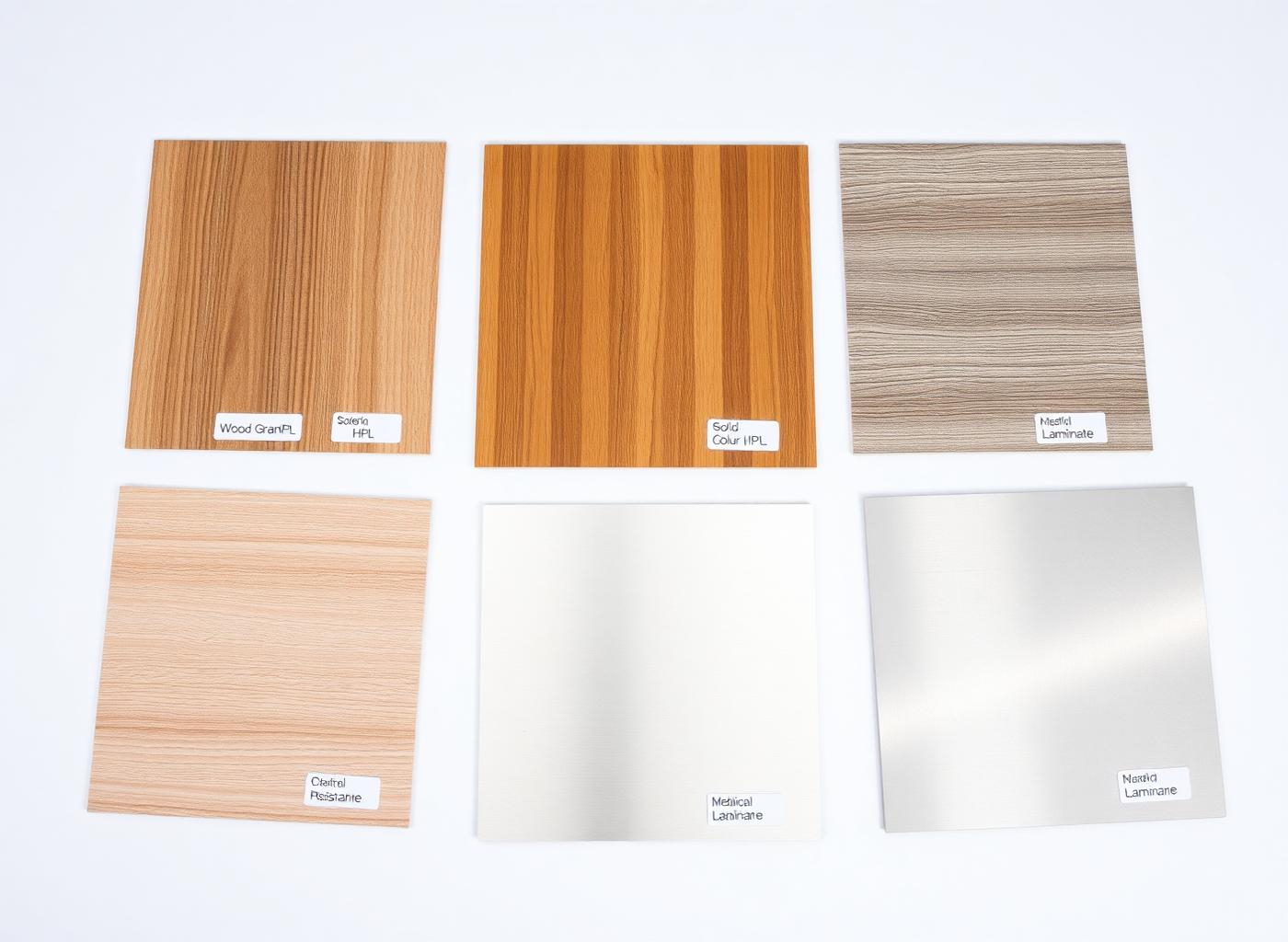

Materials & finishes
Materials
- HPL (High-Pressure Laminate) — 0.7mm–1.7mm, decorative + wear layer, post-forming grades available
- TFL (Thermally Fused Laminate) — melamine-faced board, economical for vertical and dry applications
- CRL (Chemical-Resistant Laminate) — modified phenolic resin for healthcare, lab, and disinfectant exposure
- Fire-Rated / Class A laminate — CAN/ULC-S102 and ASTM E84 compliant faces available
- MDF, MR-MDF, NAUF particleboard, and plywood cores — selected per application and moisture exposure
- PUR hot-melt adhesive — moisture-resistant, thermoplastic bond stronger than contact cement
- 3mm PVC/ABS colour-matched edge-band — pre-glued, heat-activated, end-cut for seamless joints
- Laser-edge banding — polymer edge fused to the panel face with a zero-glue-line seam
Finish systems
- Matte, satin, gloss, and textured HPL faces — matched to approved sample
- Post-forming grade for rolled counter noses and radiused edges
- Antimicrobial silver-ion additive available on select laminates
- Matching or contrasting PVC/ABS edge-band — 3mm standard, 1mm–5mm on request
- Laser-edge for ultra-clean, glue-free perimeter on visible panels
Hardware
What we specify
- Blum, Hettich, Häfele — European-grade hinges, slides, and lift systems
- ANSI/BHMA Grade 1 pulls and locks for public and institutional use
- Adjustable levellers, wire management, and grommets
- Integrated LED lighting (Loox, Tresco) on display casework
Process — award to install
01 · Estimating & Laminate Selection
We help the client or designer select the right laminate grade (HPL, TFL, or CRL) and core based on use, budget, and code requirements. For larger projects we pull lot-controlled colour runs from the manufacturer; for smaller projects we select from our in-house library.
02 · Core Preparation & Sizing
Panels are cut to size on CNC nested routing. Cores are sanded and cleaned to ensure perfect adhesion. For wet zones, cores receive a six-side seal before laminate application.
03 · Adhesive Application & Bonding
Laminate is bonded to the core using PUR hot-melt adhesive applied at temperature and pressed under controlled pressure. PUR provides a moisture-resistant, thermoplastic bond that will not delaminate like traditional contact cement.
04 · Edge-Banding
Exposed edges are banded with 3mm PVC/ABS (colour-matched to the face) or laser-edge polymer. The edge is pre-heated, applied under pressure, end-cut flush, and corner-rounded for a seamless, water-resistant perimeter.
05 · CNC Machining & Hardware
After lamination, panels return to CNC for hinge boring, hardware mortising, shelf-pin holes, and any special cutouts. Machining after laminating prevents face-chip and guarantees clean edges.
06 · QC & Pre-Ship
Every panel is inspected for delamination, edge-band adhesion, colour consistency, and dimensional accuracy against the approved shop drawings. Larger runs are spot-checked against the master sample.
07 · Delivery & Install Coordination
Panels are blanket-wrapped, palletized by zone or suite, and delivered phased to the site schedule. Install supervision is available across Canada.
What you receive
- ✓Fixed-price line-item proposal with alternates
- ✓AWMAC/AWI-compliant shop drawings (PDF + DWG)
- ✓Physical finish samples & hardware cut-sheets
- ✓Material substitution and value-engineering log
- ✓Submittal package for LEED / WELL documentation
- ✓O&M manual and care/warranty documentation at closeout
Lead time
| Budget quote | 1 business day |
| Firm quote (with drawings) | 3–5 business days |
| Shop drawings | 2–3 weeks post-award |
| Production | 6–10 weeks after approvals |
| Delivery window | Phased to site schedule |
Quality & QA
Our commitments
- Dimensional tolerances per NAAWS 4.0 grade (Custom or Premium)
- PUR bond tested for delamination resistance per ANSI/HPVA standards
- Edge-band adhesion verified by peel-test on first article
- Colour and lot consistency checked against approved master sample
- Class A / Class B fire-rating certification package when specified
Sustainability & certifications
Certifications & credits
- CARB Phase 2 / TSCA Title VI compliant cores standard; NAF/NAUF available
- GREENGUARD Gold certified laminate options available
- Low-VOC PUR adhesive systems
- Supports LEED v4/v4.1 EQ (Low-Emitting Materials) credits
Gallery
FAQs
What is the difference between HPL and TFL?+
HPL (High-Pressure Laminate) is a separate decorative sheet built from multiple resin-impregnated kraft-paper layers, then bonded to the core in our shop. It is thicker, more durable, impact-resistant, and repairable — ideal for horizontal surfaces and high-traffic areas. TFL (Thermally Fused Laminate) is a single melamine layer fused directly onto the board at the panel plant. It is thinner, more economical, and excellent for vertical panels, cabinet interiors, and dry applications where wear is lighter.
Is plastic laminate heat-resistant?+
Standard HPL is heat-resistant to approximately 300°F (150°C) during manufacture, but as a finished surface it will withstand brief contact with hot cups and plates. For extended heat exposure — coffee machines, lab equipment, or kitchen appliances — we specify heat-resistant grades or add a stainless-steel or solid-surface inset. CRL (Chemical-Resistant Laminate) also carries enhanced thermal stability for lab environments.
When do you fabricate in-house versus sourcing from a certified supplier?+
For smaller projects — single reception desks, small casework packages, one-off counters — we keep stock cores and a full laminate library in-house, fabricate everything on our edge-band line, and turn the package quickly with full client control over colour and edge detail. For larger projects — hospital wings, school board rollouts, national retail chains — we source lot-controlled laminate, matching edge-band, and CRL certification directly from certified suppliers (Wilsonart, Formica, Arborite, Nevamar, Pionite). We manage the procurement, QC, and logistics so you still deal with one fabricator, but you get the volume consistency and certification the project requires.
How is the laminate bonded to the core?+
We use PUR (polyurethane reactive) hot-melt adhesive, not traditional contact cement. PUR is applied molten, bonds under pressure, and cures to a moisture-resistant, thermoplastic joint. It is stronger, more durable in wet environments, and less prone to delamination over time — especially important for healthcare, lab, and food-service casework.
What edge options are available?+
Standard is 3mm PVC/ABS edge-band colour-matched to the laminate face, applied with pre-heating and end-cutting for a seamless joint. Upgrades include laser-edge (zero glue line, ultra-clean), 1mm–5mm band thickness, post-formed rolled noses, and solid-wood or aluminium edge profiles where the design calls for contrast.
Can laminate be used in wet or clinical environments?+
Yes — with the right specification. We use MR-MDF or phenolic cores, six-side seal, CRL faces where disinfectant exposure is expected, and continuous 3mm PVC/ABS edge-band on every exposed edge. This combination creates a water-resistant, cleanable surface suitable for hospital casework, lab benches, and food-service millwork.
Can you match a brand colour or an existing laminate?+
Yes. We work with the full palette of Wilsonart, Formica, Arborite, Nevamar, and Pionite. If you have an existing sample or a brand-standard colour, we cross-reference it to the manufacturer's current line and provide a physical sample for approval before production.
What is the warranty on laminate millwork?+
Standard 2-year workmanship and 10-year cabinet-box warranty. Laminate face warranty is backed by the manufacturer (typically 5–10 years) and we extend our workmanship warranty to cover bonding, edge-band adhesion, and installation.
Next step
Have drawings for a plastic laminate fabrication package?
Send us the set and finish schedule — we'll return a line-item quote within one business day.
